Hydraulic Linear Oil Ring Seal Low Friction Spring Energized Seals

Name: Hydraulic Linear Oil Ring Seal Low Friction Spring Energized Seals
Brand: Joyreap
Price: 1 USD

Brand Name : Joyreap

Model Number : Spring Energized Seals

Certification : ISO,IATF16949

Place of Origin : China

Name : Oil Ring Seal

Keywords : Spring Energized Seals

Brand : Joyreap

Features : Low friction

Application : Laboratory equipments

Standard : ISO,IATF16949

Contact Now

Spring Energized Seals Linear Hydraulic Seals

Spring energized seals are a highly reliable option when standard elastomer-based and polyurethane-based seals will not meet the operating limits, equipment parameters, or environmental conditions of your application. Even when a standard seal might meet basic needs, many engineers turn to spring energized seals for an added level of reliability and peace of mind.

Material:

Material	Characteristics	Temperture
Virgin PTFE	Excellent for static and light to moderate dynamic service.	-200°C~ +260°C
	Limited wear and heat resistance. FDA compliant
Modified PTFE	Excellent for light to moderate dynamic and static service.	-200°C~ +260°C
	Limited wear and heat resistance.Low gas permeability.
	FDA compliant. Good in creep and extrusion resistance.
UHMW-PE	Extremely good wear and abrasion resistance,	-150°C~ + 80°C
	but limited heat and chemical resistance. FDA compliant
PEEK	High modulus material with high temperature resistance.	-210°C~ + 310°C

PTFE + glass fibre	Tough, long wearing, heat resistant.	-200°C~ +260°C
	Recommended for high pressure hydraulic application.
PTFE + polymide	Excellent in dry service with low wear rate in vacuum and inert gases.	-260°C ~ +310°C
	Very low abrasion to dynamic mating surfaces.

Features:

Low friction coefficient, effectively reducing wear, self- lubricating
Anti-aging, no permanent elastic deformation
Significantly improve the sealing capacity and service life
Chemical resistance

Application:

High performance liquid chromatography pumps
Laboratory equipments
Low friction pneumatic equipments
Medical & laboratory equipments
Oilfield equipments
Rotary joints
LNG Nozzle

Product Tags:

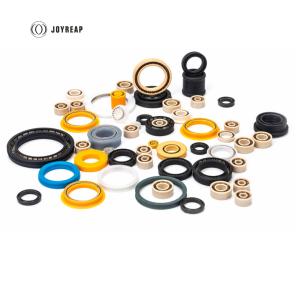

Hydraulic Linear Oil Ring Seal Low Friction Spring Energized Seals Images
